RCC Pipes
Reinforced Concrete Pipes, abbreviated as RCC Hume pipes are extensively used for water mains, sewers, culverts, irrigation supply, and in cable management. Owing to properties of hume pipes, subsuming high tensile strength, durability, leak-proof nature, low maintenance, sturdiness, RCC Pipes are widely preferred in the construction industry.
We, at BRHC, offer a broad range of Precast Concrete Pipes, Spigot & Socket type with suitable reinforcement are precisely crafted through the tried and tested centrifugal spinning process. BRHC Hume Pipes are at par with the highest standards of quality that are required in manufacturing process of hume pipes. On account of maintaining supreme quality, we subject the concrete pipes and different hume pipe diameters to various tests including the load tests and hydro pressure tests. Our years of experience in the cement trading sector comes handy when it comes to choosing premium raw materials to produce high-tensile RCC Hume Pipes.

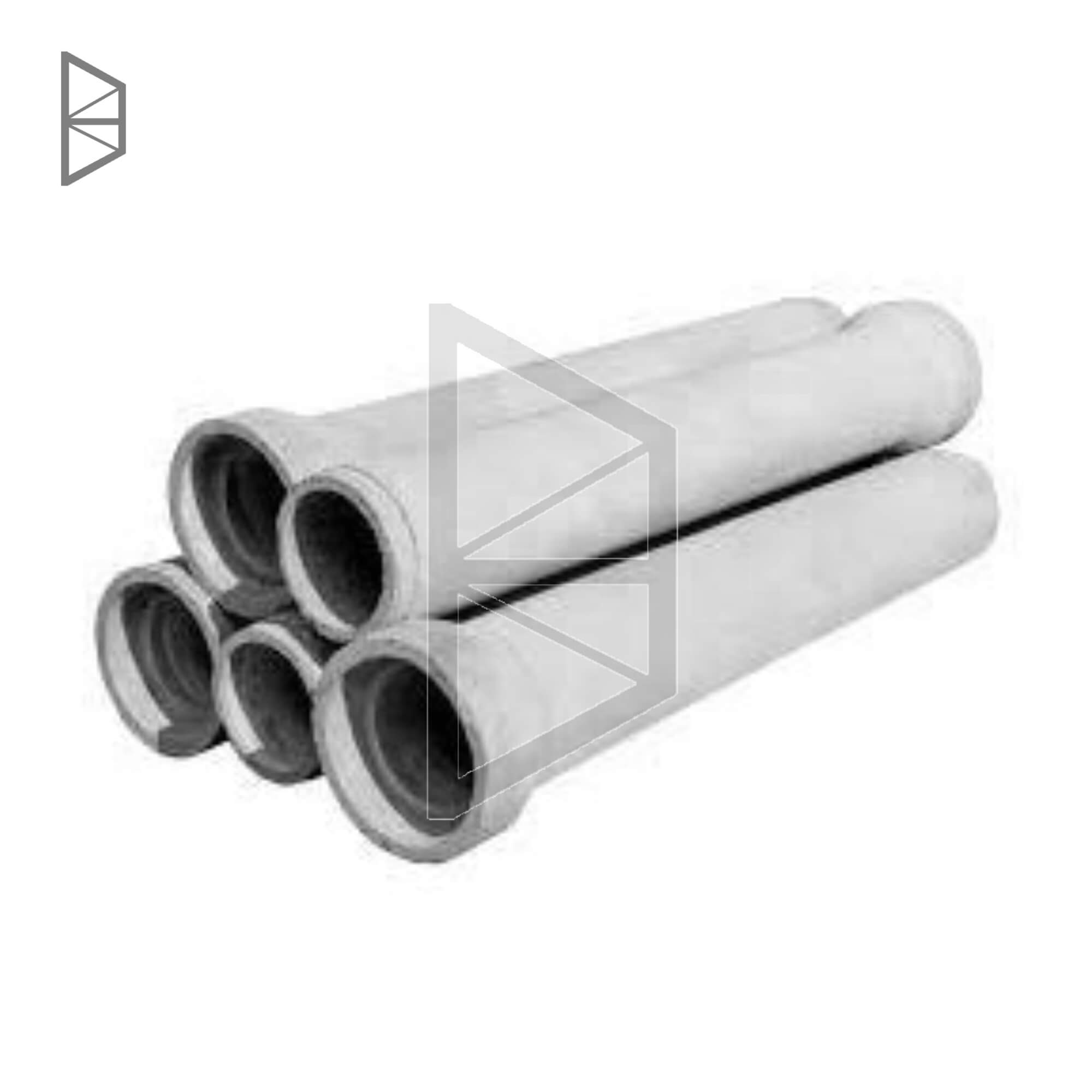

NP2 Class

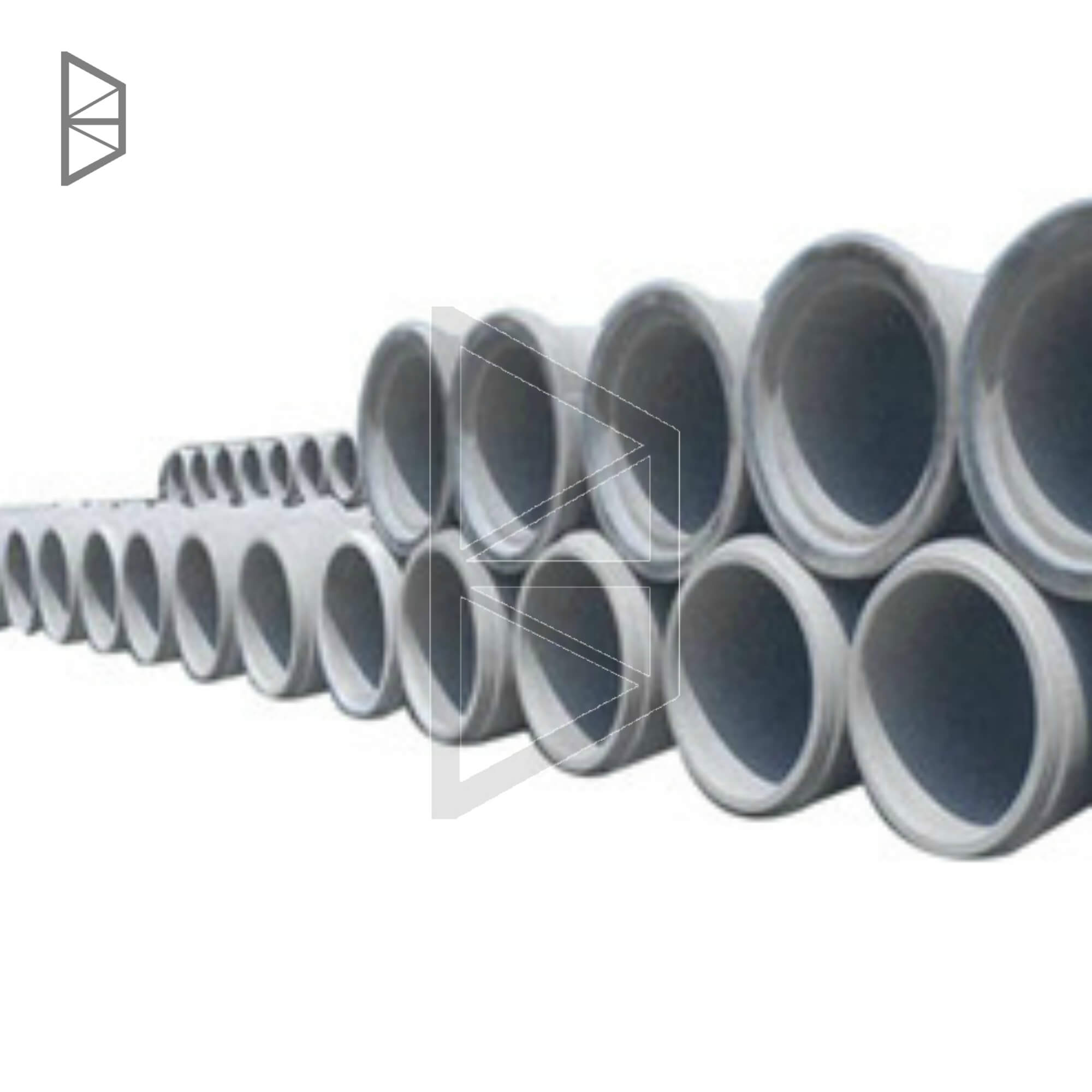

NP3 Class
NP4 Class
RCC PIPES SPECIFICATIONS AS PER INDIAN STANDARD IS 458:2021
|
Class |
Description of RCC Pipes |
Conditions Where Normally Used |
|
NP2 |
Reinforced concrete, light-duty, non-pressure pipes |
For drainage and irrigation use, for cross drains/ culverts carrying light traffic |
|
NP3 |
Reinforced concrete, medium-duty, non-pressure pipes |
For drainage and irrigation use, for cross drains/ culverts carrying medium traffic |
|
NP4 |
Reinforced concrete, heavy-duty, non-pressure pipes |
For drainage and irrigation use, for cross drains/ culverts carrying heavy traffic |
RCC PIPES SIZES
|
Internal Diameter |
Length |
NP2 Class |
NP3 Class |
NP4 Class |
|||
|
Wall Thickness |
Pipe Weight |
Wall Thickness |
Pipe Weight |
Wall Thickness |
Pipe Weight |
||
|
MM |
MM |
MM |
KGS |
MM |
KGS |
MM |
KGS |
|
150 |
2000 |
25 |
75 |
25 |
75 |
25 |
75 |
|
200 |
2000 |
25 |
95 |
30 |
115 |
30 |
115 |
|
250 |
2000 |
25 |
115 |
30 |
145 |
30 |
145 |
|
300 |
2000 |
30 |
185 |
40 |
240 |
40 |
240 |
|
350 |
2500 |
32 |
260 |
75 |
680 |
75 |
680 |
|
400 |
2500 |
32 |
290 |
75 |
755 |
75 |
755 |
|
450 |
2500 |
35 |
360 |
75 |
850 |
75 |
850 |
|
500 |
2500 |
35 |
400 |
75 |
930 |
75 |
930 |
|
600 |
2500 |
45 |
620 |
85 |
1240 |
85 |
1240 |
|
700 |
2500 |
50 |
800 |
85 |
1410 |
85 |
1410 |
|
800 |
2500 |
50 |
900 |
95 |
1800 |
95 |
1800 |
|
900 |
2500 |
55 |
1100 |
100 |
2150 |
100 |
2150 |
|
1000 |
2500 |
60 |
1350 |
115 |
2300 |
115 |
2300 |
|
1200 |
2500 |
65 |
1880 |
120 |
2940 |
120 |
2940 |
